Kärcher Compatible Boiler Coil HDS 500 C, 500 CI, 501 C, 551 C, 555, Height 400mm | 280 Bar / 4000 PSI | M22 x M22

Trustpilot

£294.95 Inc VAT

[£245.79 Ex VAT]

Quantity

IN STOCK

FULL DESCRIPTION

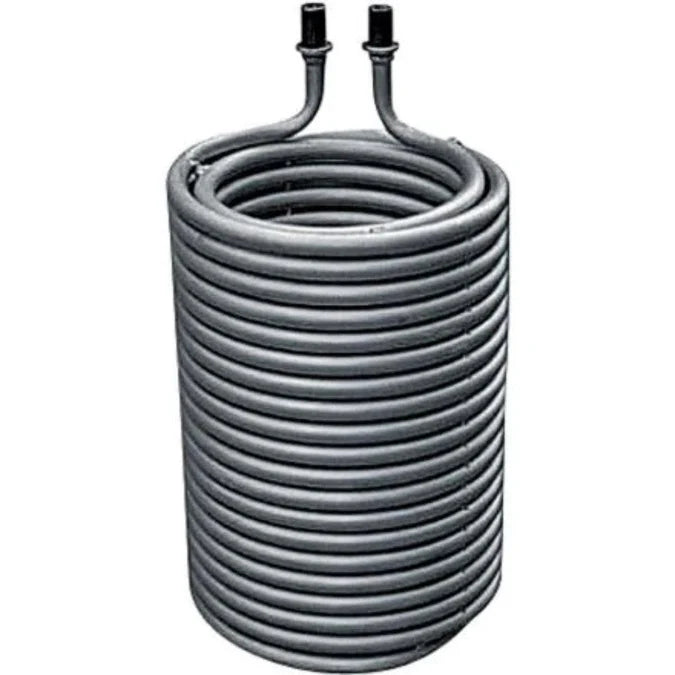

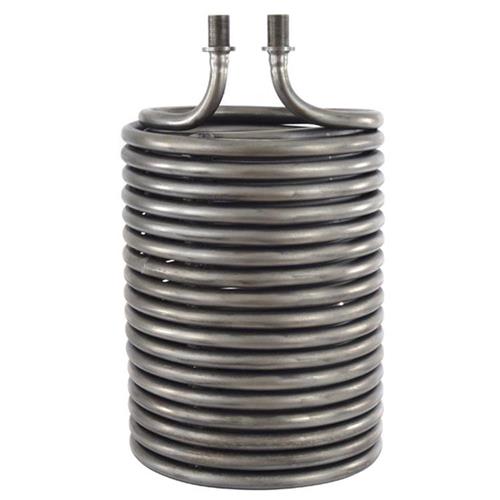

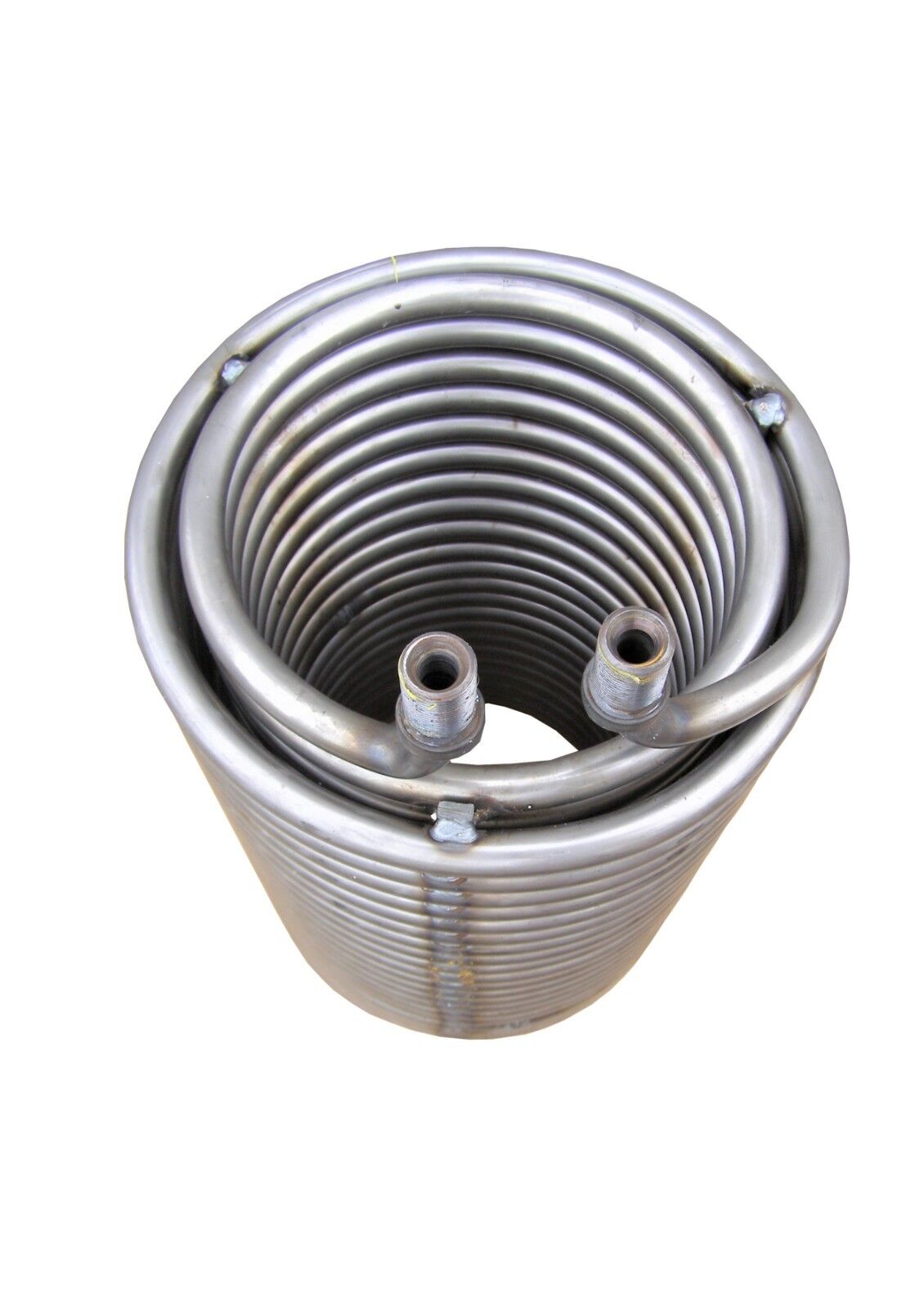

🔥 Heavy-Duty Hot Water Coil for Kärcher Pressure Washers

Upgrade your pressure washer with this high-efficiency 2-coil boiler system, engineered to provide powerful hot water cleaning performance for a wide range of Kärcher hot water pressure washers. Designed with professional-grade durability and heating efficiency in mind, this coil is an ideal direct replacement for worn or damaged original parts.

Whether you're tackling oil, grease, or heavy grime, this boiler ensures a reliable heat source for enhanced cleaning power.

✅ Kärcher Compatible Fitment

This coil features 22mm male inlet and outlet fittings with 60mm spacing between the outlet centres, ensuring compatibility with a wide range of Kärcher hot water machines. Always check your existing coil dimensions prior to ordering.

🔧 Key Specifications:

  • Max Pressure: 280 Bar / 4000 PSI

  • Height: 400mm

  • Diameter: 280mm

  • Connection Size: 22mmM inlet & outlet

  • Outlet Centre Distance: 60mm

  • Coil Design: 14 rows of 17mm tubing

  • Coil Structure: Wide internal spacing for easier cleaning and improved exhaust flow

🚀 Enhanced Coil Design for Better Performance

This coil features 14 rows of 17mm high-quality tubing, with generous spacing between the inner and outer windings. This design improves:

  • Heating efficiency

  • Ease of maintenance (less soot build-up)

  • Exhaust emission characteristics

✅ Compatible with the Following Kärcher Models:

HDS 500 C, 500 CI, 501 C, 551 C, 555, 555 C, 555 CS, 557 Ci, 558 C, 590 C, 600 C, 600 CI, 600 CS, 601 C, 601 C Eco, 697 CI, 698 C, 790 C, 790 CI, 797 CI, 797 CS, 801 B, 840 C, 890 C, 1400 SUPER, 1500 SUPER, FARMER, SB-HDW, SB-HDWS1, SB-HDWS2 – and many others.

📌 Due to slight variations in older models, we always recommend removing and measuring your current coil before placing your order—especially for pre-2000 machines.

💬 Why Choose This Coil?

Built to withstand high-pressure use and provide consistent heating performance, this Kärcher-compatible boiler is the perfect solution for replacing damaged or inefficient coils—whether you're a mobile valeter, agricultural operator, or industrial cleaner.

📦 Fast UK Delivery | 💨 Efficient Heat Transfer | 🛠️ Direct Replacement for Kärcher Hot Water Systems
